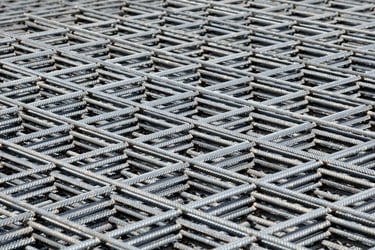

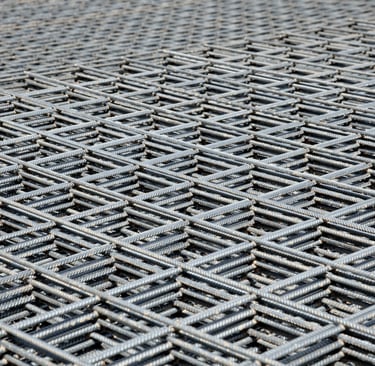

Meshes (SL72, SL82, SL92, SL102)

Under AS/NZS 4671 (Steel reinforcing materials), these profiles are classified as Class L (Low ductility) welded ribbed wire meshes with a characteristic yield strength of 500 MPa (Grade D500L).

The standard specifies distinct dimensional layouts, particularly for the SL81 configuration and the inclusion of lapping edge wires on the standard 200 mm pitch sheets.

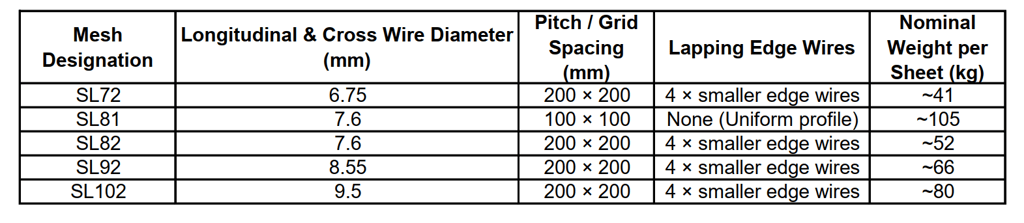

Technical Specifications (AS/NZS 4671 Compliance)

The standard dimensions for a full sheet are 6.0 m × 2.4 m

(with an effective coverage area generally calculated at 5.8 m × 2.4 m due to overlapping requirements).
